SKU: USW-48-POE

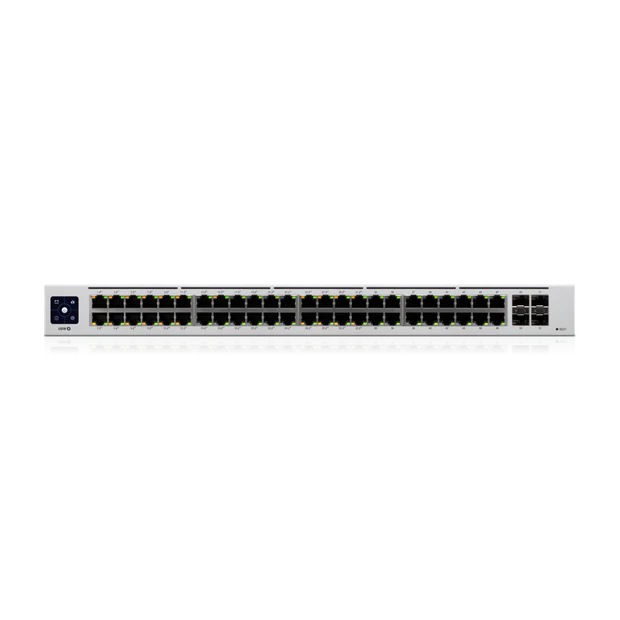

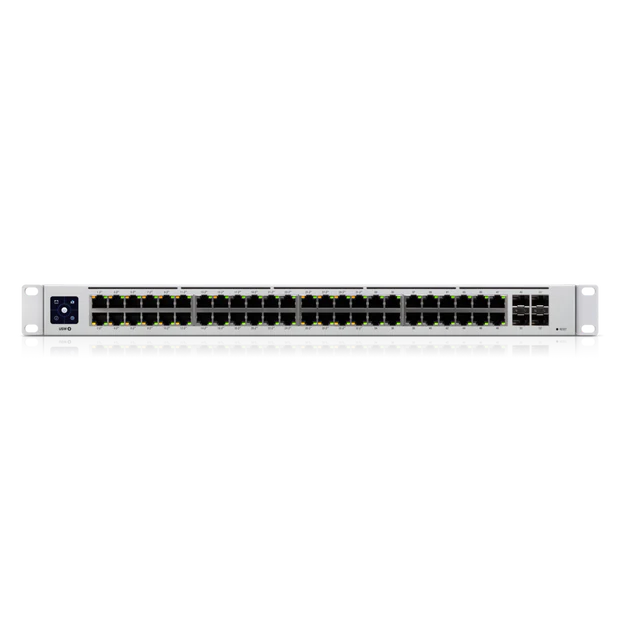

Ubiquiti USW-48-POE UniFi Switch PoE Switch Gen2 Rack Mountable

$819.99

Pre order

Category: Network Switches
Brand: Ubiquiti
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout

Description

The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3″ touch LCM to provide status Managed and configured by the UniFi Network application with UniFi Network Mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network application and Network Mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Overview & Physical Specifications
Item Specification
Dimensions 442 × 285 × 44 mm (17.4 × 11.2 × 1.7 in)
Form Factor Rack mount (1U)
Supported Rack Depth 400–1200 mm (15.7–47.2 in)
Weight (without brackets) 4.5 kg (10 lb)
Weight (with brackets) 4.6 kg (10.2 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
LCM Display 1.3" touchscreen
NDAA Compliant
Certifications CE, FCC, IC, Anatel (00593-21-08356)

Port Layout & PoE
Port Type Quantity Details
GbE RJ45 48 32× PoE+, 1G/100M/10M
1G SFP 4 1G
Max PoE Output Up to PoE+
Total PoE Availability 195 W

Performance
Feature Specification
Switching Capacity 104 Gbps
Non-Blocking Throughput 52 Gbps
Forwarding Rate 77 Mpps
Supported VLANs 1,000
MAC Address Table 16,000
Packet Buffer 1.5 MB

Access Control Lists (ACLs)
ACL Type Capacity
IPv4 ACLs 128
MAC ACLs 128

Layer 2 Features
Feature Supported
LACP Port Aggregation
STP / RSTP
Advanced IGMP Configuration
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limiting
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Virtual Network Override

Hardware & Power
Feature Specification
PoE Ports 32× PoE+
Max PoE per Port PoE: 15.4 W / PoE+: 32 W
Max Power Consumption 45 W (excluding PoE) / 240 W (including PoE)
Power Input Universal AC, 100–240 V AC, 50/60 Hz
Power Supply Internal AC/DC, 240 W
Heat Dissipation 153.5 BTU/hr (excluding PoE output)
ESD Protection Air ±16 kV, Contact ±12 kV

Environmental Specifications
Item Specification
Operating Temperature −5 to 40 °C (23 to 104 °F)
Operating Humidity 10–90% non-condensing

Management & Software
Item Specification
Management Interface Ethernet
Application Requirement UniFi Network
Minimum Software Version 7.2.94 or later
Datasheet
Download Download
