SKU: UA-HUB-DOOR

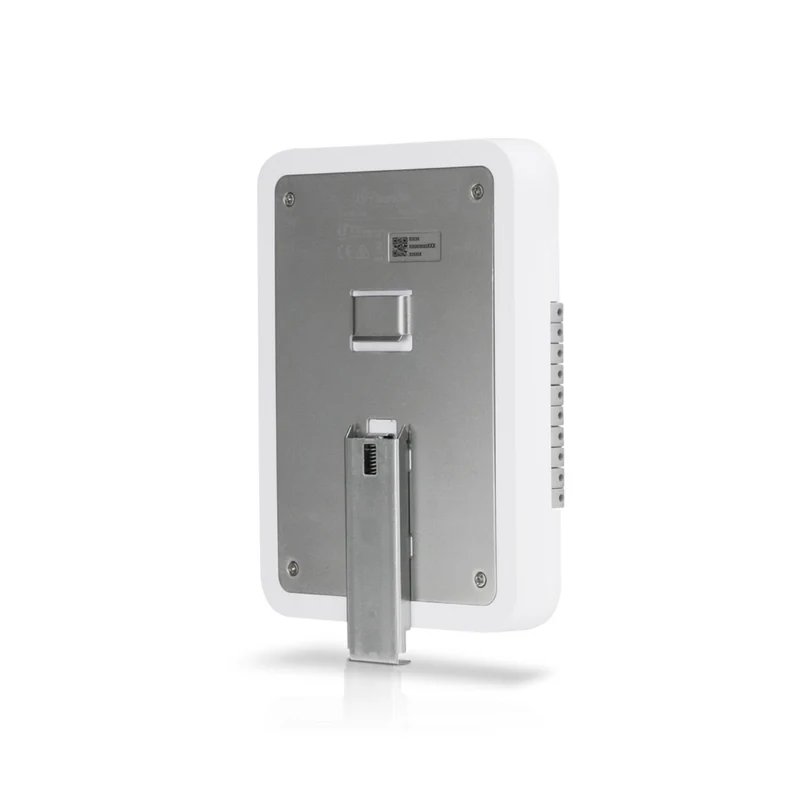

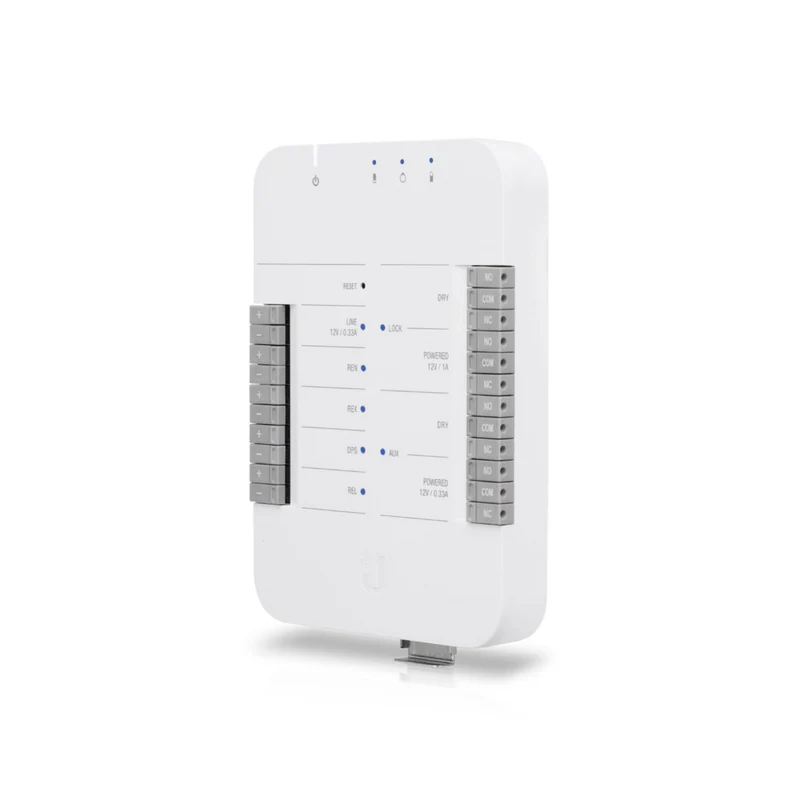

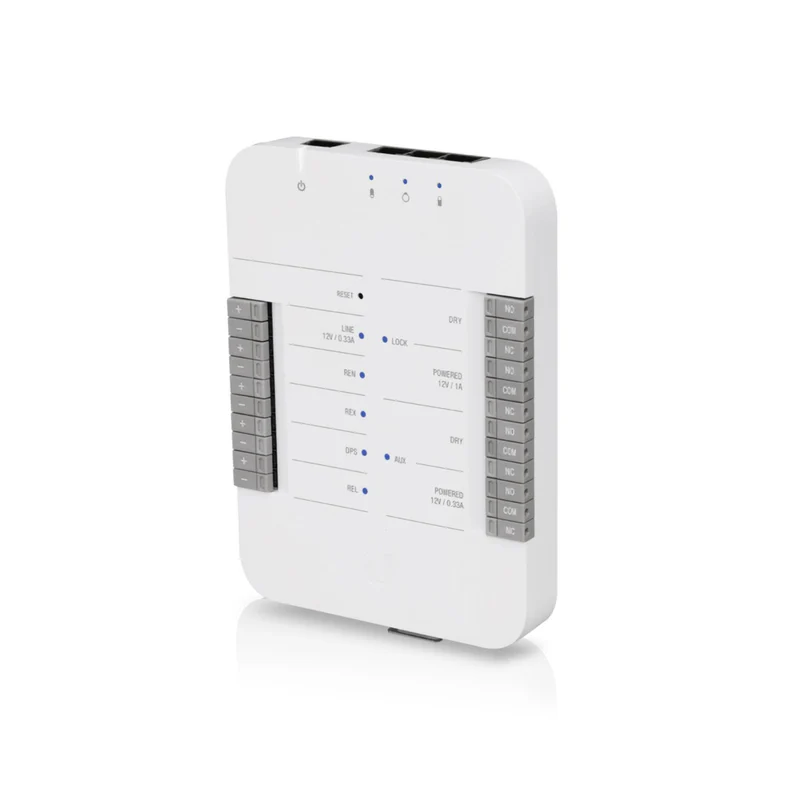

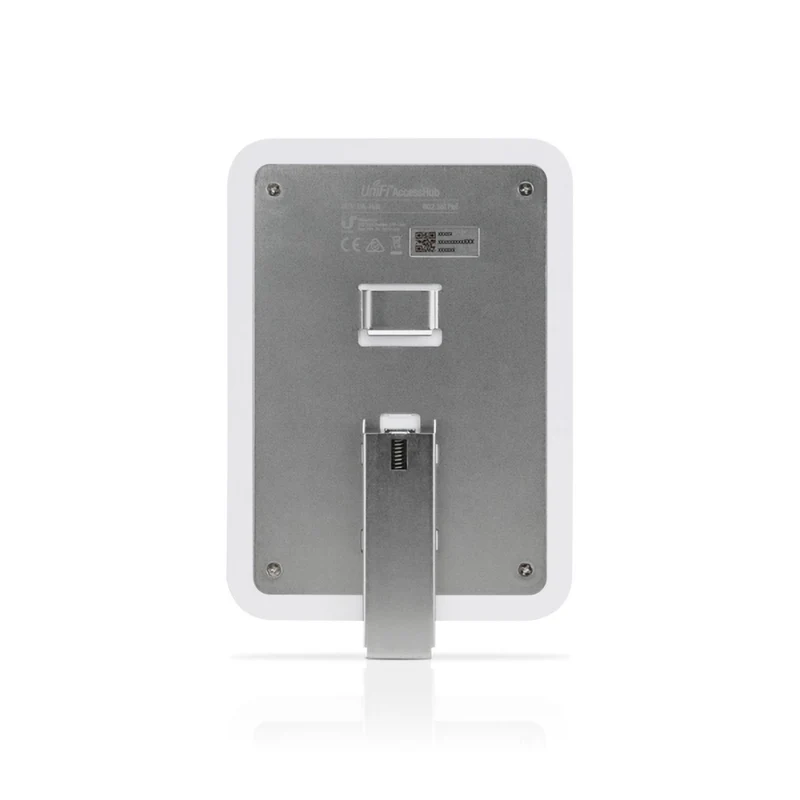

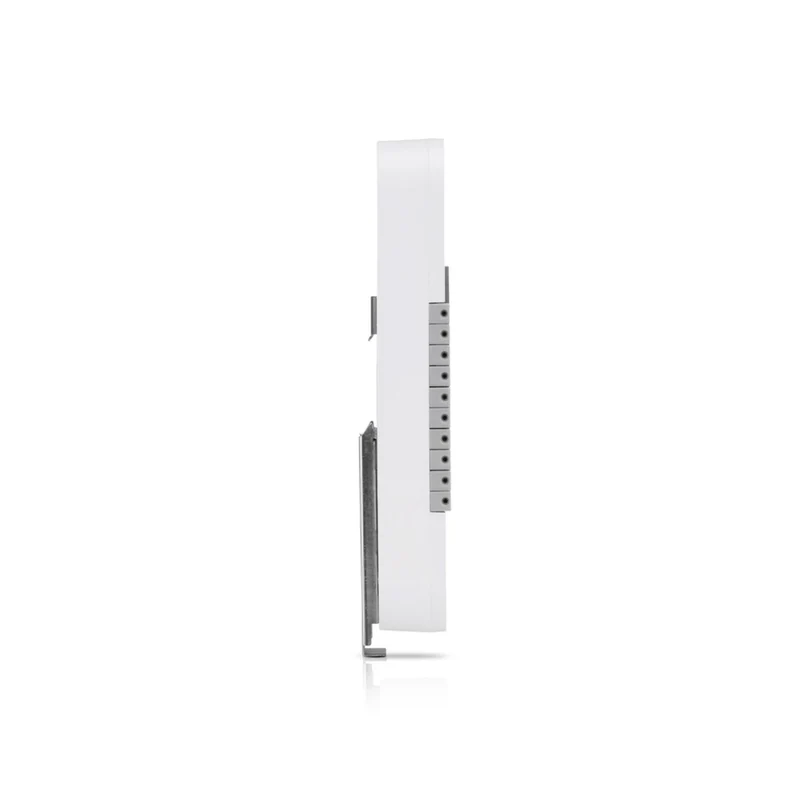

Ubiquiti UniFi Single-Door Access Hub - White

$279.99

Pre order

Brand: Ubiquiti
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout

Description

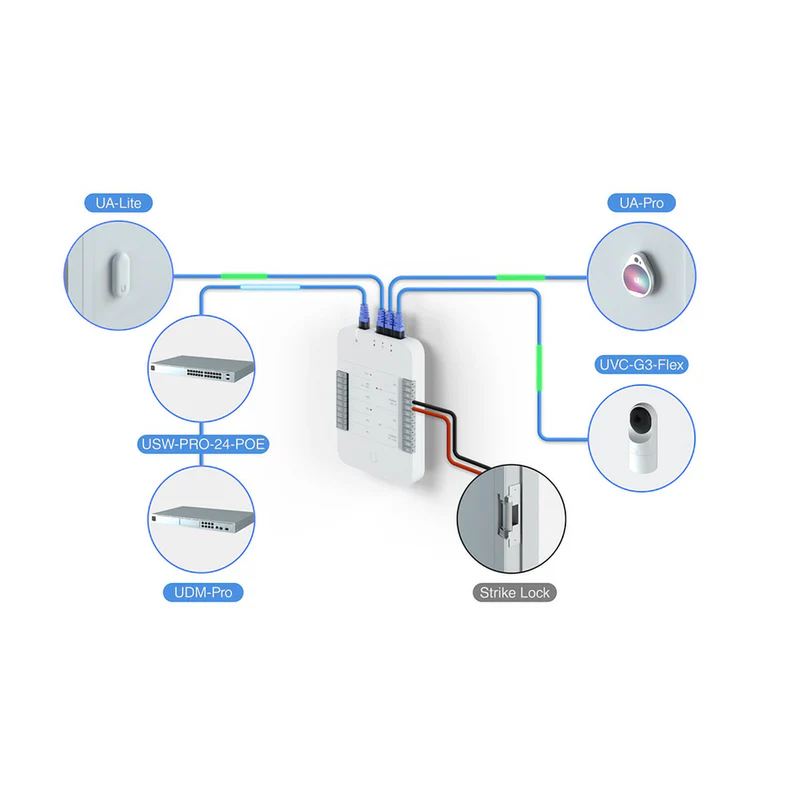

The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access application. Easily manage users, visitors, schedules, and access policies with the intuitive browser-based interface.

Benefits

  • 12V powered and dry relays compatible with most locks
  • Three 802.33af PoE ports for UniFi readers and G3 Flex surveillance camera
  • Four inputs for motion sensors, request-to-exit devices and door position switch
  • Managed with UniFi Access application in UDM-Pro

Tech specs

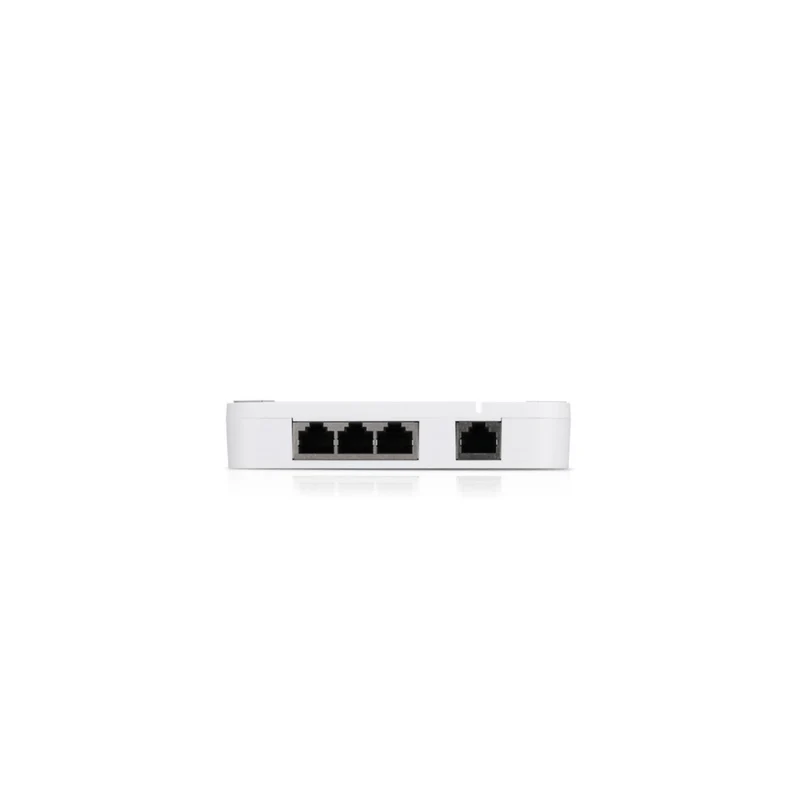

  • Networking Interface: (4) 1 Gbps Ethernet
  • Input Relays: REX - Request to Exit, REN - Request to Enter, REL - Remote Release, DPS - Door Position Sensor
  • Dry Output Relay: Lock - Rated 30VDC, up to 1A; Aux - Rated 30VDC, up to 1A
  • Powered Output Relay: Lock - 12VDC, up to 1A; Aux - 12VDC, up to 0.33A; Line - 12VDC, up to 0.33A
  • LEDs: 1 x System, 3 x PoE Out, 4 x Input, 2 x Output Relays, 1 x 12VDC Out
  • Buttons: Terminal Blocks, Reset
  • Maximum Power Consumption: 40W
  • Power Method: 802.3bt PoE
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Operating Humidity: 5 to 90% Noncondensing
  • Certifications: CE, FCC, IC

Box Contents

  • 1x Ubiquiti UniFi Access Hub
Datasheet
Download Download
