SKU: DS-3E0510P-E

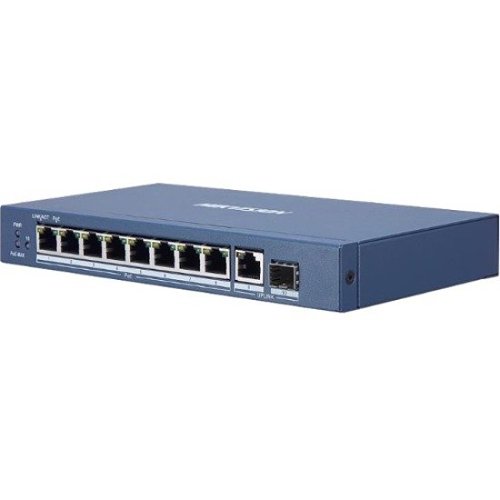

Hikvision DS-3E0510P-E 8-Port Unmanaged Gigabit PoE Switch, 20Gbps, Blue

$103.88

10 in stock

Category: Network Switches
Brand: Hikvision
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout

Description

  • 4 × gigabit PoE ports, and 1 × gigabit RJ45 port.
  • IEEE 802.3at/af standard.
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
  • PoE port with 6 KV surge protection.
  • PoE output power management.
  • Gigabit network access.
  • Wire-speed forwarding and non-blocking design.
  • Store-and-forward switching.
  • Solid high-strength metal shell.
  • Fan-free design with high reliability.
  • General
  • ShellMetal material, fan-free design
  • Net Weight0.6 kg (1.32 lb)
  • Gross Weight1.4 kg (3.09 lb)
  • Dimensions (W × H × D)217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
  • Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply48 VDC, 2.5 A
  • Max. Power Consumption120 W
  • Power Consumption in Idle10 W
  • Installation ModeDesk-Mounted,Wall-Mounted;
  • Surge Protection6 KV
  • Network Parameters
  • Ports8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
  • MAC Address Table4 K
  • Switching Capacity20 Gbps
  • Packet Forwarding Rate14.88 Mpps
  • Internal Cache1.5 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af,IEEE 802.3at
  • PoE Power PinEnd-span: 1/2(+), 3/6(-)
  • PoE PortPoE: Ports 1 to 8
  • Max. Port Power30 W
  • PoE Power Budget110 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU)
Data Sheet
Download Download

Customer Reviews

No reviews yet.

Description

Description

  • 4 × gigabit PoE ports, and 1 × gigabit RJ45 port.
  • IEEE 802.3at/af standard.
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
  • PoE port with 6 KV surge protection.
  • PoE output power management.
  • Gigabit network access.
  • Wire-speed forwarding and non-blocking design.
  • Store-and-forward switching.
  • Solid high-strength metal shell.
  • Fan-free design with high reliability.
Specification
  • General
  • ShellMetal material, fan-free design
  • Net Weight0.6 kg (1.32 lb)
  • Gross Weight1.4 kg (3.09 lb)
  • Dimensions (W × H × D)217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
  • Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply48 VDC, 2.5 A
  • Max. Power Consumption120 W
  • Power Consumption in Idle10 W
  • Installation ModeDesk-Mounted,Wall-Mounted;
  • Surge Protection6 KV
  • Network Parameters
  • Ports8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
  • MAC Address Table4 K
  • Switching Capacity20 Gbps
  • Packet Forwarding Rate14.88 Mpps
  • Internal Cache1.5 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af,IEEE 802.3at
  • PoE Power PinEnd-span: 1/2(+), 3/6(-)
  • PoE PortPoE: Ports 1 to 8
  • Max. Port Power30 W
  • PoE Power Budget110 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU)
Resources
Data Sheet
Download Download
